Water quality sensors, dual channel transmitter
Water quality sensors, dual channel transmitter.

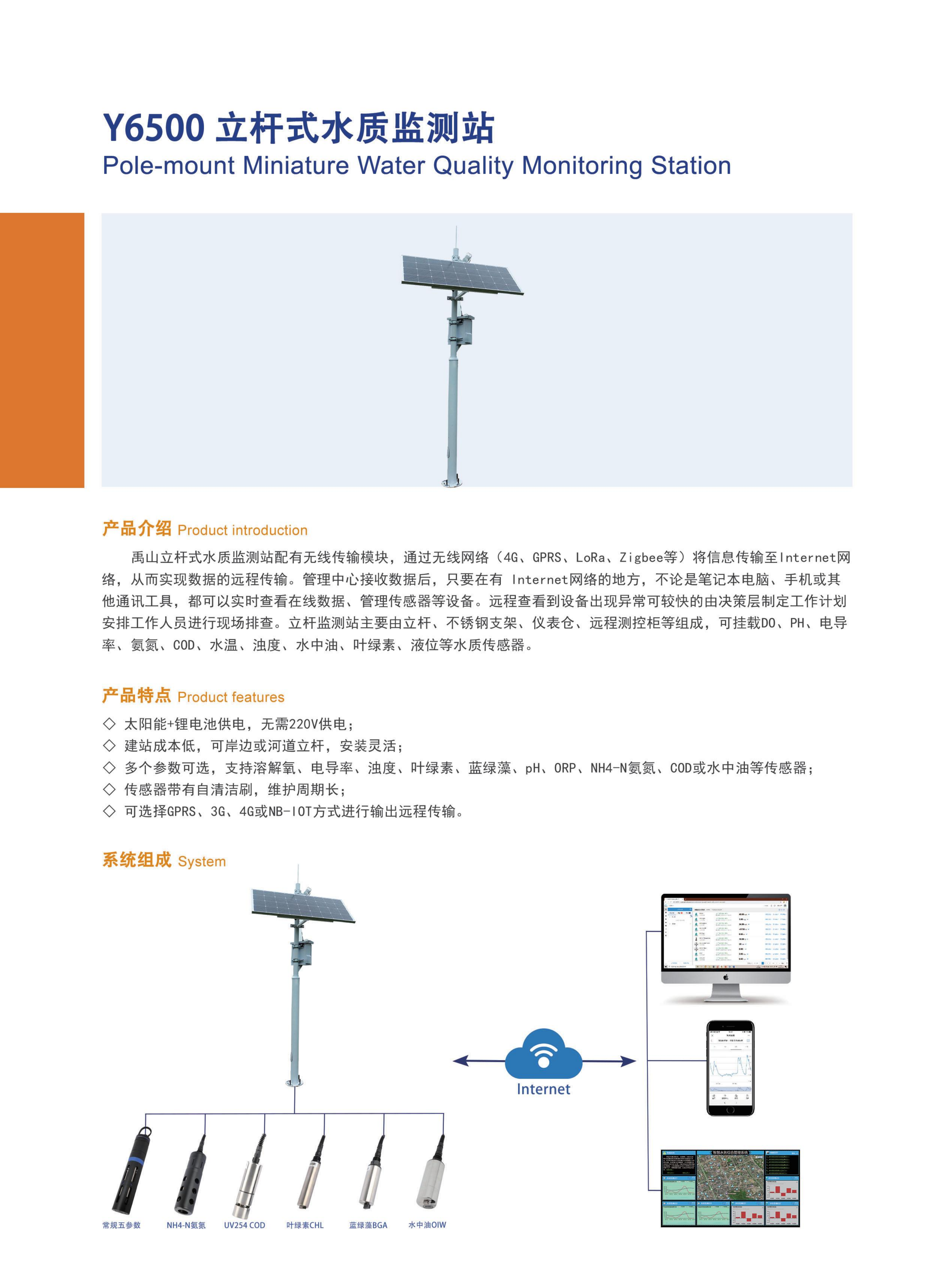

| Product Introduction | The upright water quality monitoring station is equipped with a wireless transmission module, which transmits information to the Internet through wireless networks (4G, GPRS, LoRa, Zigbee, etc.) Network enables remote transmission of data. After receiving data, the management center can access it from anywhere with an internet network, whether it's a laptop, mobile phone, or other devices His communication tools enable real-time viewing of online data and management of sensors and other devices. Remote inspection of equipment anomalies can quickly lead to the development of work plans by the decision-making level Arrange staff to conduct on-site inspections. The pole monitoring station mainly consists of poles, stainless steel brackets, instrument compartments, remote control cabinets, etc., which can be mounted with D0, PH, conductivity, etc Rate, ammonia C0D、 Water temperature, turbidity, oil in water, chlorophyll, liquid level and other water quality sensors. |
|---|---|
| Product Features | Powered by solar energy and lithium battery, no need for 220V power supply; Low construction cost, capable of erecting poles along the shore or river, and flexible installation; Multiple parameters can be selected, supporting sensors such as dissolved oxygen, conductivity, turbidity, chlorophyll, blue-green algae, pH, ORP, NH4-N ammonia nitrogen, COD, or water oil; The sensor is equipped with a self-cleaning brush, which has a long maintenance cycle; GPRS, 3G, 4G, or B-I0T modes can be selected for remote transmission output. |
| Certification | ISO 9001 CE |
| Material | steel, Stainless steel |
| Details Images | Service temperature: 180℃

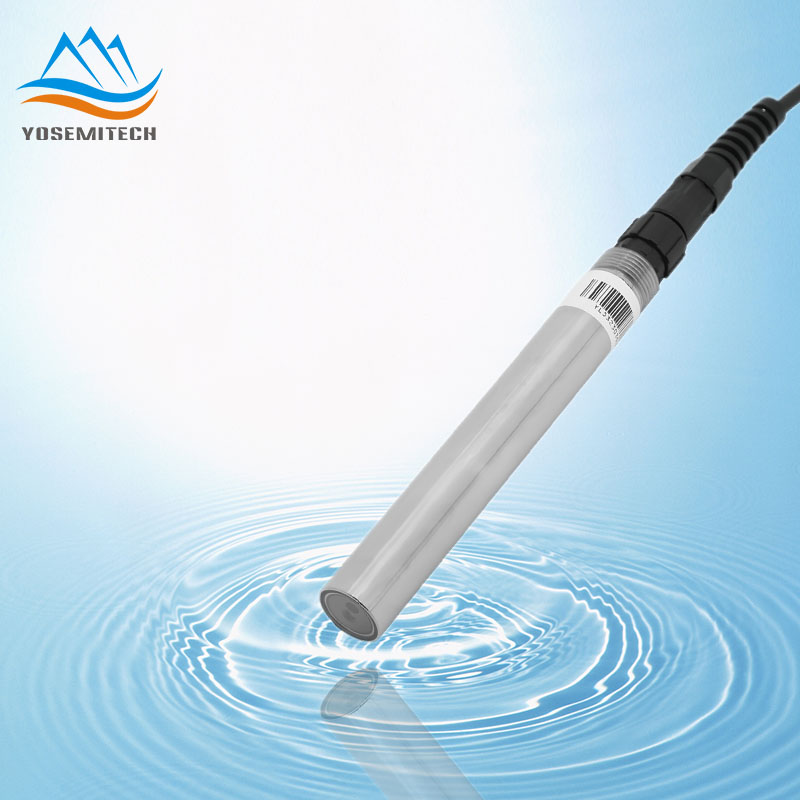

model: Y616-B measuring principle: Ultraviolet fluorescence method range: 0-50ppm (optional 0-150ppm) Linearity: R2>0.999 resolution: 0.01ppm temperature range :0-50C Maximum pressure: 6bar Protection level: 1P68 interface: RS-485, MODBUS protocol power waste: 0.2W (recommended power supply: DC9-24V, current>50mA) size: Φ22mm*175.5mm Cable length: 10 meters (default), customizable calibration: 0-point, 1-point, or 2-point calibration Housing material: titanium alloy Link:Selection of high-precision water quality sensors |
| Customization options |
Customized logo (Min. order: 500 sets) Customized packaging (Min. order: 500 sets) Graphic customization (Min. order: 500 sets) |
| Place of Origin | shanghai China |
|---|---|
| Single gross weight | 2.25 |
| Single package size | 2.5X2.35X5.45 cm |
