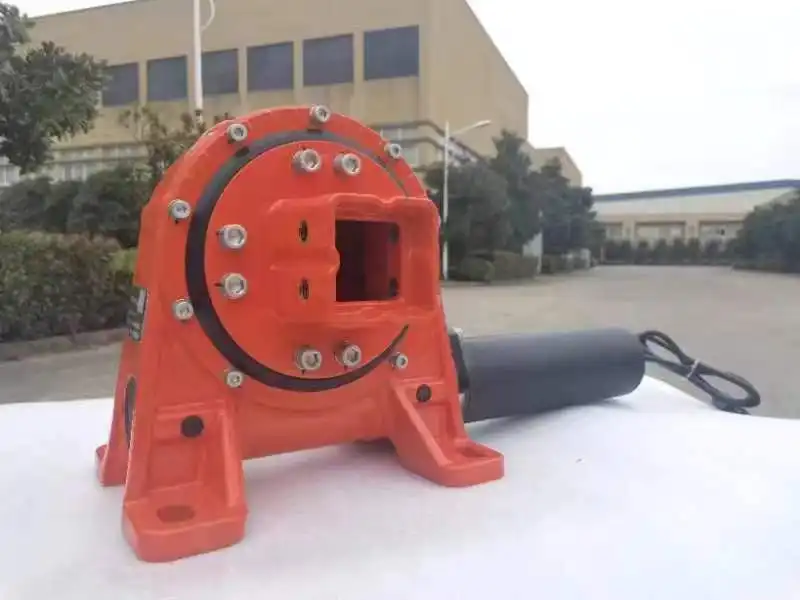

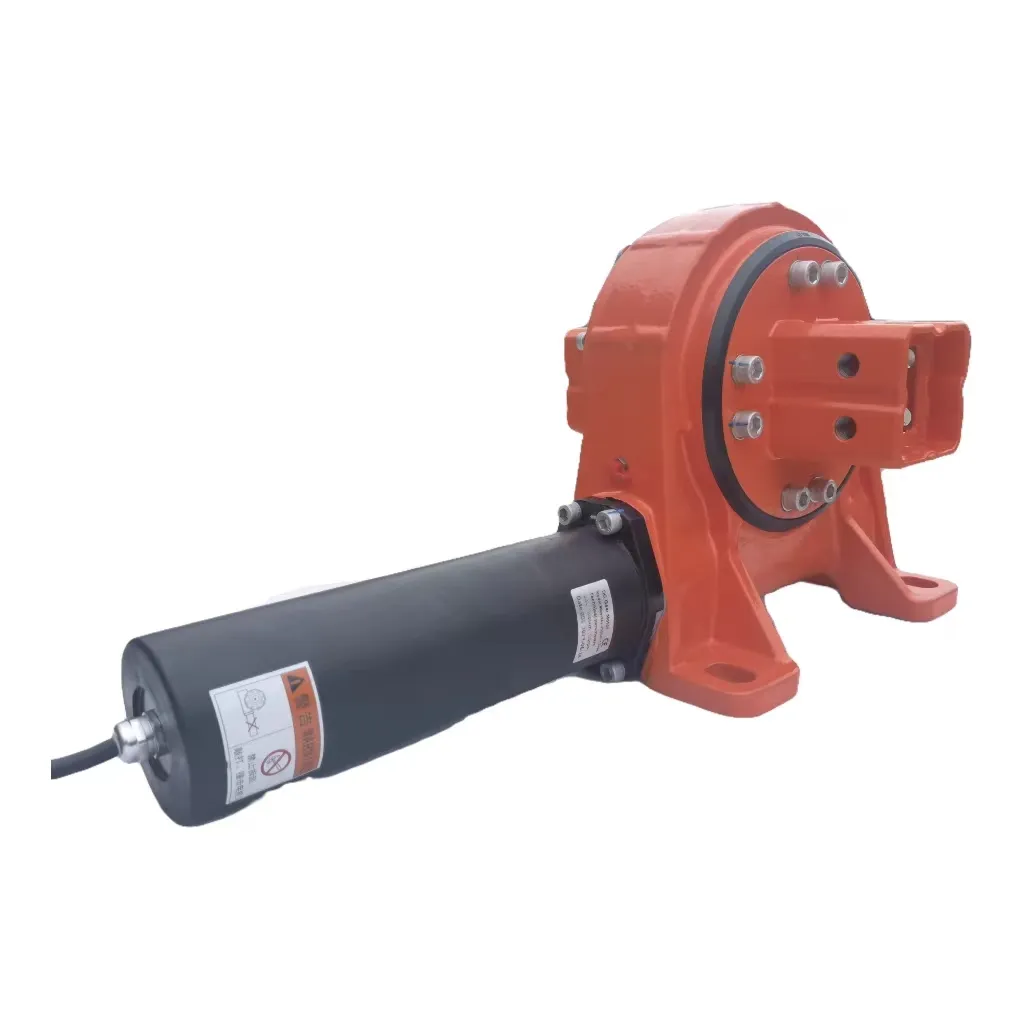

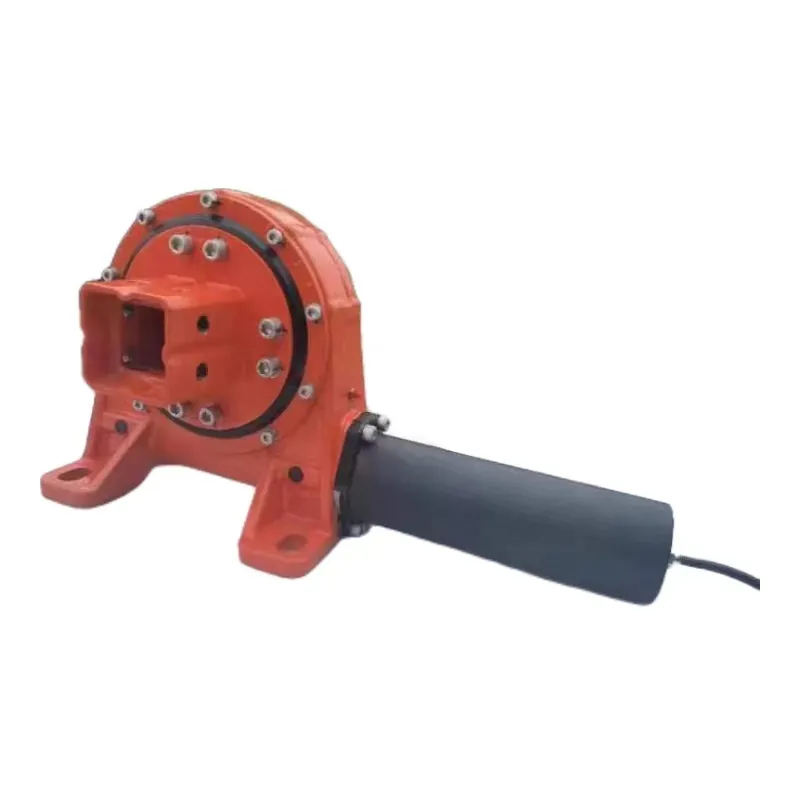

High Tracking Accuracy Single Axis Slewing Drive with Motor 7inch Slew Drive for Solar Panel Floating PV Mounting System
Chinese factory direct sales of easy to install High Tracking Accuracy Single Axis Slewing Drive with Motor 7inch Slew Drive.
Easy to install and maintain Solar Panel Floating PV Mounting System, High Tracking Accuracy Single Axis Slewing Drive with Motor 7inch Slew Drive.
| Wind Load | 55 m/s,or Tailored to site requriement |
|---|---|
| Snow Load | Tailored to site requriement , Up to 0.45 KN/m2 |
| Application | Installation Site Water area, like lake, reservoir... |
| Corrosion Category | C4 |
| Tracking Precision | 0.2° |
| Material | HDPE or HDPE+Aluminum |
| Slewing Drive Ratio | 52:1 |
| Holding Torque-MY | 34KN/m |
| Self-locking | Yes |
| Nominal Torque | 6200N/m |
| Certification | ISO9000 |
| Ingress Protection | IP65 |
| Single gross weight | 33.000 kg |
|---|---|
| Single package size | 60X34X34 cm |
